Wooden reels of 450mm to 3200mm diameter steel cables, electrical cables, communication cables and conductors.

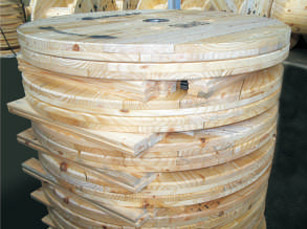

Assemble your wood reel kit when ready to use

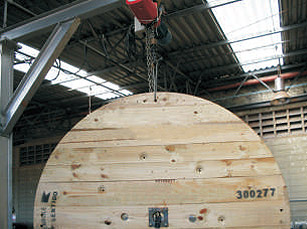

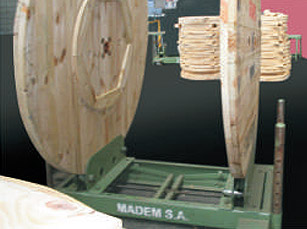

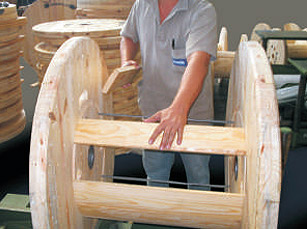

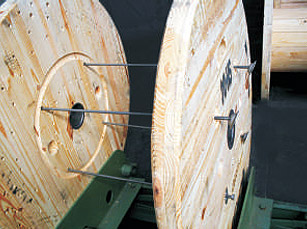

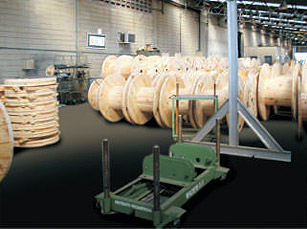

Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7 Step 8

Advantages

  • Kits occupy less storage space than assembled reel
  • Less forklift movement
  • Easy inventory control
  • Significant reduction on logistics costs
  • Easy assembly of all reel sizes

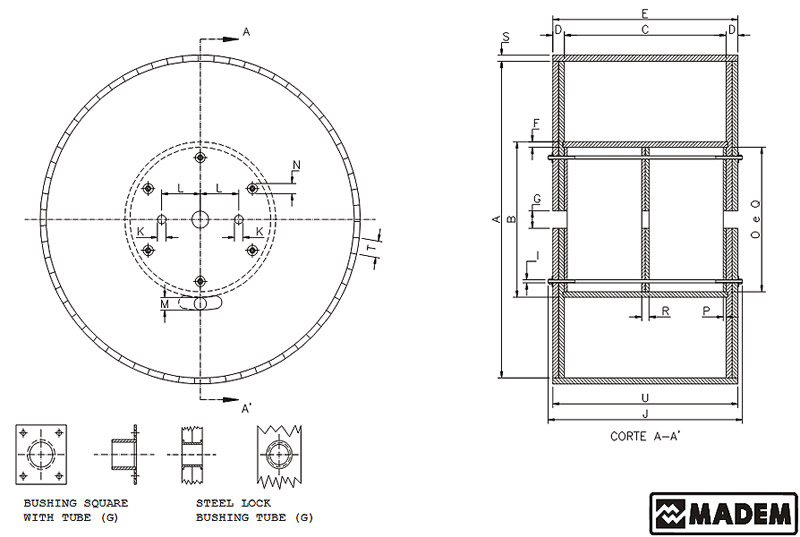

Wooden drums constructions details

Legenda

A FLANGE DIAMETER mm
B EXTERNAL BARREL DIAMETER mm
C INTERNAL WIDTH mm
D FLANGE THICKNESS mm
E EXTERNAL WIDTH mm
F BARREL STAVES THICKNESS mm
G CENTER HOLE ( PS )
H QUANTITY OF BOLTS PC
I BOLTS DIAMETER Inches
J BOLTS LENGTH mm
K DRIVE HOLE DIAMETER mm = 2
L DRIVE HOLE C-C DISTANCE mm
M CABLE HOLE DIAMETER mm = 1
N CUP / FLAT WASHERS DIAMETER mm
O DIAMETER OF BARREL END SUPPORT DISC mm
P TICKNESS OF BARREL END SUPPORT DISC mm
Q CENTER SUPPORT DISC DIAM mm
R CENTER SUPPORT DISC THICKNESS mm
S OUTER LAGGING THICKNESS mm
T OUTER LAGGING WIDTH mm
U OUTER LAGGING LENGTH mm
V OUTER LAGGING QUANTITY pc
X WEIGHT CAPACITY = Kgs
Z THICKNESS WOOD TOLERANCE +/- 2mm
